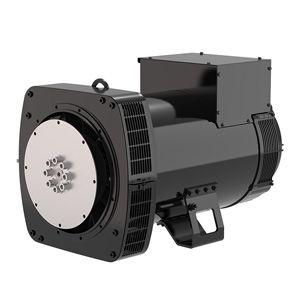

Leroy Somer TAL44 Alternators

The Best of Performance

The Nidec Leroy-Somer range of TAL44 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the TAL44 strikes the perfect balance between compactness, reliability, performance and longevity.

Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.





Product Range Overview

Refer to the table below

Characteristics

  • Power
     70kVA - 200kVA

  • Voltage 400v

  • Poles 4 Pole

  • Speed 1500 rpm

  • Max Efficiency 95.8%

  • Standard AVR
     R120

  • Excitation Brushless with AVR

  • Winding Protection
     Tropicalised

  • Paint
     RAL9005 Matt Black

Key Features

  • Insulation Class Class H

  • Temperature Rise Class H

  • Number of Leads
     6

  • Protection IP23

  • Altitude <1000 masl

  • Overspeed 2250 rpm

  • Excitation system
     Shunt

  • Sustained Short Circuit Protection Optional

  • Short-circuit current
     300% for 10 s

Optional Equipment

  • Dedicated Voltages Spot Wound

  • Spacer Heater
     High Humidity

  • Winding Protection Harsh Environments

  • Stator Temp Detectors
     PT100

  • Bearing Temp Detectors PTC

  • Air Inlet Filters Derate by 5%

  • Customised Paint RAL Colours

  • Digital AVR's D350

  • Custom Cable Glands

Product Range

Overview

Models

  • Frame

  • TAL 44A

  • TAL 44B

  • TAL 44C

  • TAL 44D

  • TAL 44E

  • TAL 44H

  • TAL 44J

  • TAL 44K

  • TAL 44L

  • TAL 44M

Prime Rated kVA & kW

  • Model kVA / kW

  • TAL 44A 70 / 56

  • TAL 44B
     80 / 64

  • TAL 44C
     90 / 72

  • TAL 44D
     100 / 80

  • TAL 44E
     125 / 100

  • TAL 44H
     135 / 108

  • TAL 44J
     150 / 120

  • TAL 44K
     165 / 132

  • TAL 44L
     180 / 144

  • TAL 44M
     200 / 160


  • Values a re at 1500rpm 50hz 400v ,1000masl 0.8pF Class H/H

Experience Leroy Somer

Experience this range of alternators




Mounting Configurations ( Standard )

SAE 3 - 11.5

SAE 2 - 11.5

Double Bearing

Support - Sales and After Market

Spare Parts & Technical Support

Please click on the link below for spare parts service and maintenance

Purchase Parts Online

Technical Feature Downloads

Leroy Somer EPG Overview

Leroy Somer TAL44 Range T.D.S.

Leroy Somer AVR R120 T.D.S.

Leroy Somer AVR R180 T.D.S.

Leroy Somer AVR D350 T.D.S. (Optional with AREP +)

Winding Protections and Coatings

Connected Solutions - GenOSys

PDF Files

Leroy Somer TAL44 (A,B,C,D SAE 2 - 11.5) H=270 PDF

Leroy Somer TAL44 (L,M SAE 2 - 11.5) H=280 PDF

Leroy Somer TAL44 (L,M SAE 2 - 11.5) H=270 PDF

Leroy Somer TAL44 (E,H,J SAE 2 - 11.5) H=270 PDF

Leroy Somer TAL44 (K SAE 2 - 11.5) H=270 PDF

Leroy Somer TAL44 (A,B,C,D SAE 3 - 11.5) H=270 PDF

Leroy Somer TAL44 (L,M SAE 3 - 11.5) H=280 PDF

Leroy Somer TAL44 (L,M SAE 3 - 11.5) H=270 PDF

Leroy Somer TAL44 (E,H,J SAE 3 - 11.5) H=270 PDF

Leroy Somer TAL44 (K SAE 3 - 11.5) H=270 PDF


CAD Files

Leroy Somer TAL44 (A,B,C,D SAE 2 - 11.5) CAD (DXF)

Leroy Somer TAL44 (E,H,J SAE 2 - 11.5) CAD (DXF)

Leroy Somer TAL44 (K SAE 2 - 11.5) CAD (DXF)

Leroy Somer TAL44 (A,B,C,D SAE 3 - 11.5) CAD (DXF)

Leroy Somer TAL44 (E,H,J SAE 3 - 11.5)  CAD (DXF)

Leroy Somer TAL44 (K SAE 3 - 11.5) CAD (DXF)

Service Offering Overview

Maintenance & Installation Manual with Parts List

EC Declaration

CSA Certification of Compliance

SONCAP Certificate

UL - D350 Certificate of Compliance

UL - D550 Certificate of Compliance

UL - D700 Certificate of Compliance

UL - Component - Generators

UL - Component - Generators (LSAH)

UL - Generators

UL - Hubli Plant (India)
