Products: Nidec Leroy Somer LSA49.1

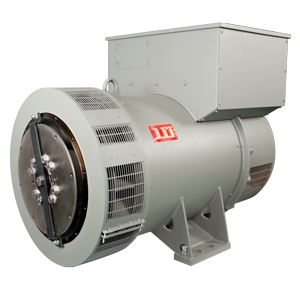

Leroy Somer LSA49.1 Alternators

The Best of Performance

The Nidec Leroy-Somer range of LSA49.1 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the LSA49.1 strikes the perfect balance between compactness, reliability, performance and longevity.

Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.





Product Range Overview

Refer to the table below

Characteristics

  • Power
     660kVA - 1010kVA

  • Voltage 400v

  • Poles 4 Pole

  • Speed 1500 rpm

  • Max Efficiency 95.5%

  • Standard AVR
     R450

  • Excitation Brushless with AVR

  • Winding Protection
     Tropicalised

  • Paint
     RAL 7038 Grey (Standard)

Key Features

  • Insulation Class Class H

  • Temperature Rise Class H

  • Number of Leads
     12

  • Protection IP23

  • Altitude <1000 masl

  • Overspeed 2250 rpm

  • Excitation system
     AREP

  • Sustained Short Circuit Protection Optional

  • Short-circuit current
     300% for 10 s

Optional Equipment

  • Dedicated Voltages Spot Wound

  • Spacer Heater
     High Humidity

  • Winding Protection Harsh Environments

  • Stator Temp Detectors
     PT100

  • Bearing Temp Detectors PTC

  • Air Inlet Filters Derate by 5%

  • Customised Paint RAL Colours

  • Digital AVR's D550

  • Custom Cable Glands

Product Range

Overview

Models

  • Frame

  • LSA 49.1 S4

  • LSA 49.1 M75

  • LSA 49.1 L10

  • LSA 49.1 L11

Prime Rated kVA & kW

  • Model kVA / kW

  • LSA 49.1 S4
     660 / 528

  • LSA 49.1 M75
     750 / 600

  • LSA 49.1 L10
     890 / 712

  • LSA 49.1 L11
     1010 / 808


  • Values a re at 1500rpm 50hz 400v ,1000masl 0.8pF Class H/H

Experience Leroy Somer

Experience this range of alternators




Mounting Configurations ( Standard )

SAE 1 - 14

SAE 0 - 18

Double Bearing

(Non Stock Option)
