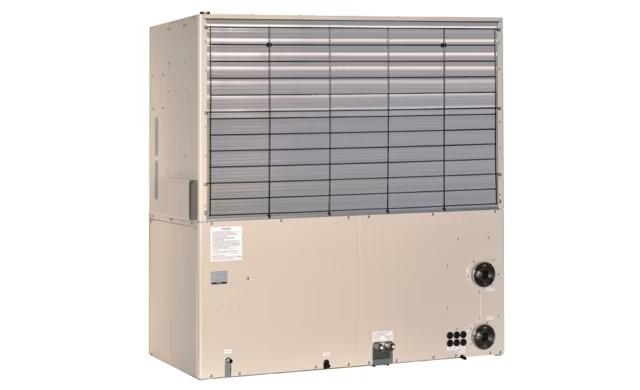

Yanmar Gas Engine Heat Pumps (GHP)

A Sustainable Future ​

Yanmar Gas-engine Heat Pumps (GHP) provide very efficient gas powered heating and cooling solutions for all kinds of buildings. By using world class Yanmar gas-engines to drive the system, these reversible air-source heat pumps can give low running costs, reduce CO2 emissions and use very little electricity. GHP is a well established technology and Yanmar has been one of the leaders in this field for the last 30 years. By offering Air-to-air (VRF) and Air-to-water GHP systems, Yanmar can provide efficient and cost effective solutions for a wide range of cooling and heating applications.

Air to Water GHP Units ​

This additional heat energy from the gas engine means that GHP systems can offer continuous operation without needing to defrost the outdoor unit heat exchangers, offer powerful heating even when outdoor air temperatures are low as well as providing fast heating start up.

Energy saving design

  • High efficiency gas engine heat pump
  • How water output (up to 30kW) available in cooling mode
  • Reduces electricity consumption and CO2 emissions

Ease of installation

  • Small footprint design ready for outdoor installation
  • Internal air-side and water-side heat exchangers
  • Very low electrical power consumption

Ease of operation

  • Remote change over between heating and cooling modes
  • No cooling tower maintenance or water quality issues
  • Expandable system up to 8 units (up to 570kW) with easy control



Product Overview

Refer to the table below for model ECWP710J

Characteristics

  • Heat Pump Output Capacity
     Cooling 71kW / Heating 80kW

  • Electrical Input
     Cooling 1.66kW / Heating 1.51kW

  • Gas Input (HHV)
     Cooling 67.6kW / Heating 63.4kW

  • Outlet Water Temperature
      Cooling 5 to 15℃ / Heating 35 to 55℃

  • Hot Water Output
     30kW

  • COP
     Up to 1.41

  • Power Supply
     230V 50Hz

  • Sound Data
     62dB
