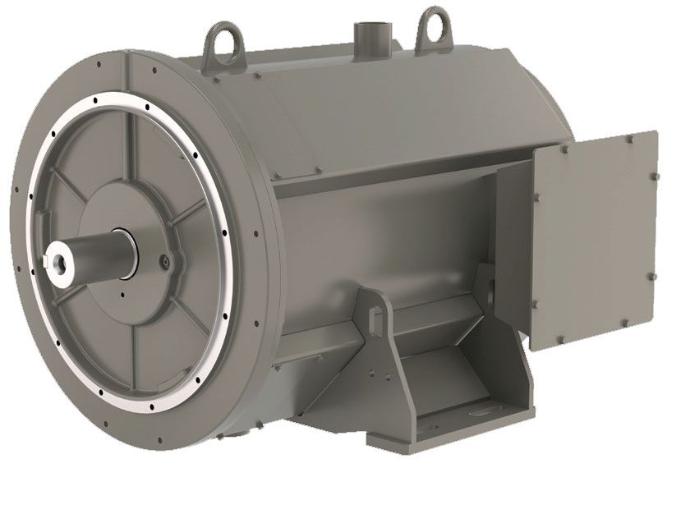

Leroy Somer LSAH IP44 Alternators
The Best of Performance
The Nidec Leroy-Somer range of LSAH IP44 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the LSAH IP44 strikes the perfect balance between compactness, reliability, performance and longevity.
Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.
Product Range Overview
Refer to the table below
Characteristics
-
Power
10kVA - 104kVA -
Voltage 400v
-
Poles 4 Pole
-
Speed 1500 rpm
-
Max Efficiency 95.7%
-
Standard AVR
D350 -
Excitation Brushless with AVR
-
Winding Protection
Tropicalised -
Paint
RAL7024 Gunmetal Grey
Key Features
-
Insulation Class Class H
-
Temperature Rise Class F or H
-
Number of Leads
6
-
Protection IP44
-
Altitude <1000 masl
-
Overspeed 2250 rpm
-
Excitation system
AREP
-
Sustained Short Circuit Protection Optional
-
Short-circuit current
300% for 10 s
Optional Equipment
-
Dedicated Voltages Spot Wound
-
Spacer Heater
High Humidity -
Winding Protection Harsh Environments
-
Stator Temp Detectors
PT100 -
Bearing Temp Detectors PTC
-
Customised Paint RAL Colours
-
Digital AVR's D550
-
Custom Cable Glands
-
Remote voltage potentiobmeter
Product Range
Overview
Models
-
Frame
-
LSAH 42.3
-
LSAH 44.3
Prime Rated kVA & kW
-
Frame
LSAH 42.3
-
Model kVA / kW
-
LSAH 42.3 VS0
10 / 8.0
-
LSAH 42.3 S0
15 / 12.0
-
LSAH 42.3 M1
20 / 16.0
-
LSAH 42.3 VL6
33 / 26.4
-
-
Values a re at 1500rpm 50hz 400v ,1000masl 0.8pF Class H/F
Prime Rated kVA & kW
-
Frame
LSAH 44.3
-
Model kVA / kW
-
LSAH 44.3 M4
55 / 44
-
LSAH 44.3 M6
71 / 57
-
LSAH 44.3 L8
82 / 66
-
LSAH 44.3 VL12
104 / 83
-
-
Values a re at 1500rpm 50hz 400v ,1000masl 0.8pF Class H/H
Experience Leroy Somer
Experience this range of alternators
Trusted the world over by those that make the world move.
Mounting Configurations ( Standard )
SAE 4 - 8
SAE 4 - 10
SAE 3 - 10
SAE 3 - 11.5
SAE 2 - 10
SAE 2 - 11.5
Double Bearing
