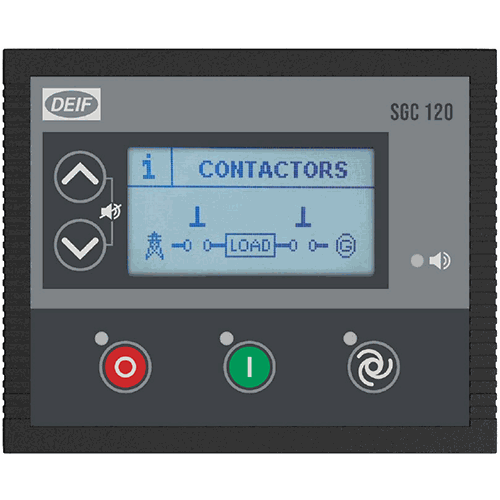

DEIF SGC 120
A Simplified Solution For Genset Builders.
The SGC 120 controller contains all the functions you need to protect and control a genset, a genset breaker, and a mains breaker. You can choose between automatic or manual running mode, and you can start and stop gensets remotely using the Remote start/stop function. The controller is suitable for applications including AMF (automatic mains failure), engine drive, and island (off-grid) mode.
Several measurement functions
The controller allows you to measure 1-phase, 2-phase, 3-phase, and split-phase voltage, frequency, load current, and power factor, engine safety parameters such as engine temperature, oil pressure, and fuel level, fuel theft protection, and the engine battery. It features CAN bus and Modbus communication plus nine configurable inputs, four analogue inputs, and six configurable digital outputs.
User-friendly display
You can configure parameters from a PC
using the DEIF Smart Connect utility software, or from the unit’s
user-friendly, full graphics LCD display. The backlit display can show
values and alarms in several languages including English, Chinese, and
Spanish.
Deep sleep extends battery life
The SGC 120 has a
practical deep sleep function that extends the battery life by
suspending normal controller functions when the genset is off.
Product Overview
Refer to the table below
Key Features
-
Modes for operation:
Automatic
-
Manual
-
Remote Stop & Start
-
-
Applications:
Island application
-
Automatic Mains Failure (AMF)
-
-
Inputs:
3 Resistive
-
1 Analogue I/V
-
5 Digital Inputs (9 max)
-
-
Outputs:
6 Digital Output
-
-
Communication:
Modbus over RS-485
-
CANbus for engine communication
Key Features Continued.........
-
Measurements:
1-Φ/3-Φ voltage
-
Frequency
-
3-Φ Load current
-
P/F for generator and mains
-
-
Monitoring:
Engine oil pressure (AI/CAN)
-
Engine temperature (AI/CAN)
-
Fuel level and more
-
-
Programming:
From Display
-
With Smart Connect on PC
-
-
Remote Monitoring
