Products: DEIF Battery Chargers
DEIF Battery Chargers
A Simplified Solution For Genset Builders.

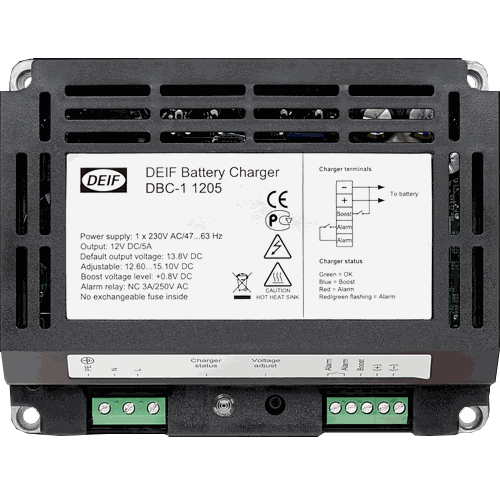

Tested and certified as a first grade quality unit with a robust aluminium housing and black plastic cover, the DBC-1 has a long and reliable product life and withstands years of everyday wear and tear. The DBC-1 is available with 12 V or 24 V voltage and 5 or 10 A current output.
Using switch mode technology to reduce energy waste, the unit is also vibration-resistant and features dry contact alarm relay activation in cases of fault detection, as well as boost/equalisation for extended battery lifetime, and advanced over-voltage (transient) protection.
Product Overview
Refer to the table below
Key Features
-
Mode for operation:
Measurement
-
Calculation
-
-
Applications:
Grid Support
-
Automatic Mains Failure (AMF)
-
-
Inputs:
3 Analogue R/I/V
-
39 Digital inputs
-
-
Outputs:
2 digital
-
29 Relay
-
-
Communication:
Modbus TCP/IP
-
RS-485
Key Features Continued.........
-
Monitoring:
1-ph/3-ph voltage
-
Frequency
-
Current 3ph
-
p/F for generator and mains
-
-
Functionality:
Multi-Master System
-
Plant Control (Up to 992 DG)
-
-
Measurements:
Engine oil pressure
-
Engine temperature
-
Fuel level and ECU Values
-
-
Programming:
From Display
-
With Utility Software (USW3)
-
M-Logic
-
-
Remote Monitoring
Variants Range
Overview
DBC-1
-
Outputs: 1205 12V DC, 5A
-
Aux. Supplies: 230V AC
-
Variant: 02
DBC-1
-
Outputs: 1205 12V DC, 10A
-
Aux. Supplies: 230V AC
-
Variant: 04
DBC-1
-
Outputs: 1205 24V DC, 5A
-
Aux. Supplies: 230V AC
-
Variant: 06
DBC-1
-
Outputs: 1205 24V DC, 10A
-
Aux. Supplies: 230V AC
-
Variant: 08
