Products: AGG ASZ - Series Engine

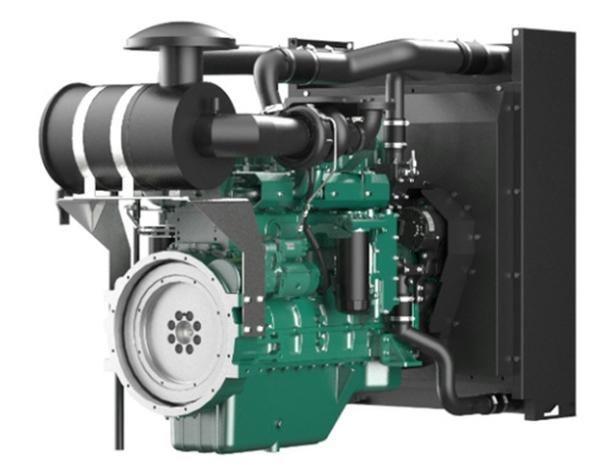

AGG ASZ - Series Generator Engines
Giving You Better Power
The ASZ diesel engine is a jointly designed unit between AGG and UK Ricardo. We referred to the demands of the Chinese market combined with proven technology to develop a new and outstanding product. Adopting a GDPD development process, this series of engine is a world-class power platform created by following SATC Motor manufacturing standards. The Z series engine offers a compact structure, wide power range, high reliability, efficiency, and low vibration and noise.
Product Range Overview
Refer to the table below
Characteristics
-
Engine Type
4 - Stroke
-
Power
15kVA - 50kVA
-
Cylinder
4
-
Speed 1500 RPM
-
Cooling
Water Cooled
-
Starting System
Electric 12vdc
-
Injection Type
Direct
-
Frequency
50Hz
-
Emissions Regulations
Non-Regulated Territories
Optional
-
Speed 1800rpm
-
Frequency
60Hz
-
-
Extras
Water Heater Jackets
-
Sensors
-
Engine Protections and Controls
-
Service Kits
Product Range
Overview
Engine Model
-
Model
-
AS2700-G1
-
AS3200-G1
-
AS3200-G2
-
AS3500-G1
-
Prime Rated kW & kVA
-
Model kW / kVA
-
AS2700-G1
22 / 20
-
AS3200-G1
32 / 30
-
AS3200-G2
39 / 40
-
AS3500-G1
49 / 50
-
-
Values are Rated at 1500rpm 50hz 400v, 1000masl 0.8 pF 40 Deg C
Experience AGG
Introducing AGG
Mounting Configurations ( Standard )
SAE 4-7.5
SAE 3-11.5
Support - Sales and After Market
Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
Technical Feature Downloads
AGG Technical Data Sheet
AGG Drawings
AGG Operation & Maintenance Manual
